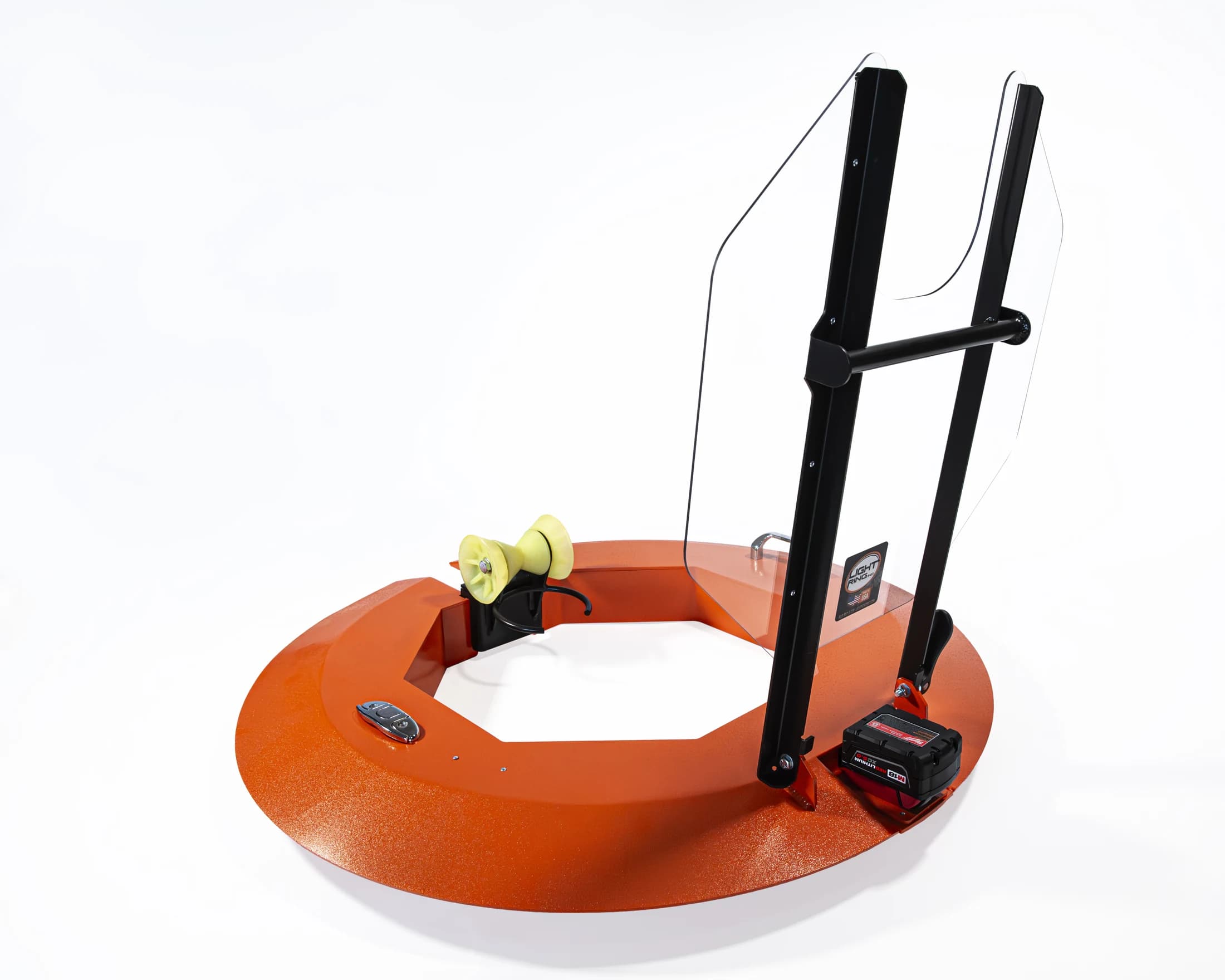

Our standard Light Ring cover opens while remaining attached to the frame. Its locking arrangement provides open and closed positions within the supplied instructions. Do not stand on the cover; it is not a load-rated walking surface or fall-arrest device.
For your sewer and CCTV crew.
Light your manhole and guide your equipment lines.
Our Light Ring combines LED lighting, a hinged cover and a removable roller for your jet hose or CCTV cable. Our standard model has a 22- to 30-inch manhole range; our XL has a 24- to 38-inch range. Compare the ranges for the manholes your crew works on.
Ask us for current pricing and availability.
LIGHT RING MPS (Manhole Protection System)STANDARD MODEL
We work with professional crews.
Sewer cleaningCCTV inspection & rehabilitationMunicipal public works01 / Specifications
The
Nerdy Stuff.
Compare the details that distinguish our two models, from manhole size range to the LED arrangement. Both combine lighting, a hinged cover and equipment-line guidance.
Standard Light Ring22–30in.
Manhole opening range
Light Ring XL24–38in.
Manhole opening range
| The detail | Light Ring | Light Ring XL |
|---|---|---|
| Manhole opening range | 22 to 30 inches | 24 to 38 inches |
| Model | JFLR-150 | JFLR-300 |
| Overall dimensions | 32-inch OD × 18.25-inch ID × 3.75-inch H | 40-inch OD × 21.25-inch ID × 4-inch H |
| Weight | 25 lb | 45 lb |
| LED modules | 4 modules | 6 modules |
| Nominal module output | 1,500 lumens per module | 1,500 lumens per module |
| Nominal combined output | 6,000 lumens | 9,000 lumens |
| Main body and cover | Powder-coated aluminum; 1/4-inch polycarbonate cover; cam-lock | Powder-coated aluminum; hinged cover |
| Equipment-line guidance | Removable roller and rope cleat | Removable roller and rope cleat |
| Battery configuration | 18V Milwaukee standard; DeWalt special order; tool only | 18V Milwaukee |
| List price | $3,699 | $4,699 |
The lumen figures add the nominal outputs of the LED modules. The standard Light Ring is tool only; batteries and chargers are sold separately, and the battery bundle is discontinued. Dimensions are outside diameter (OD), inside diameter (ID) and overall height (H). List prices exclude any separately quoted shipping and tax.
Choose a model and quantity below, or ask us for help comparing standard and XL.
Get a quote02 / Model comparison
Compare our Light Ring and Light Ring XL.
Our standard Light Ring has four LED modules and a 22- to 30-inch manhole range. Our XL has six modules and a 24- to 38-inch range. Compare both models, then select quantities for your crew.
LIGHT RING XL01 / 03
For larger openings.
Light Ring XL

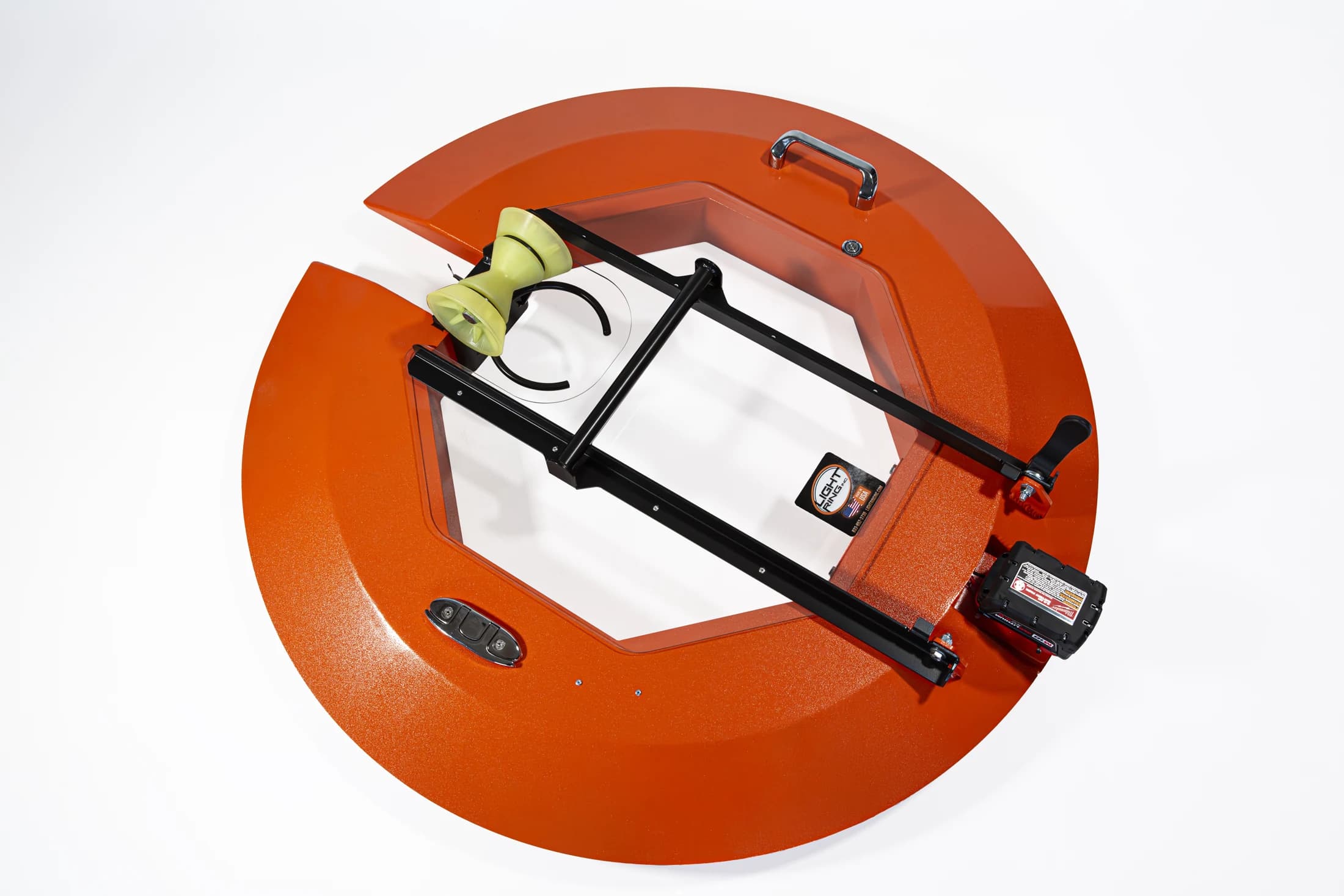

Our JFLR-300 Light Ring XL combines six LED modules, a hinged cover, removable roller and rope cleat for 24- to 38-inch manhole openings. It weighs 45 lb and lists at $4,699.
- Documented opening range
- 24 to 38 inches
- Lighting arrangement
- 6 LED modules
Our Light Ring XL uses an 18V Milwaukee battery configuration.
We confirm current pricing and availability with your request.
Compare the clear-opening ranges for the manholes your crew works on: 22 to 30 inches for our standard Light Ring and 24 to 38 inches for XL. Check rim shape, seating and clearance before each use. Ask us if you need help choosing a model.
03 / Standard Light Ring components
Lighting, cover access and line guidance in one assembly.
Our standard Light Ring combines the components below for your sewer-cleaning and CCTV work. The XL has its own larger fit range and six-light arrangement in the model comparison.
STANDARD LIGHT RING01 / 05
Our standard Light Ring places four LED modules around the underside of the frame to direct light into the manhole. Our XL uses six modules. In both models, the lighting is mounted on the ring alongside the cover and line guide.
Our removable roller supports your jet hose or CCTV cable as it feeds across the manhole rim. Follow the supplied instructions when installing or removing the roller.
Our integrated cleat provides an equipment-rope tie-off on the Light Ring frame. Use the equipment-line arrangement in the supplied instructions. Keep personnel and rescue lines off this cleat.
Our raised orange frame surrounds the manhole and carries the cover, roller, LED modules and equipment-rope cleat. The main frame is powder-coated aluminum.
Select a detail to see it on our product.
04 / Choose your Light Ring
Choose a Light Ring for your crew.
We can help you compare our standard Light Ring and Light Ring XL, explain what comes with each model and prepare a quote. Contact us even if you have not chosen a model yet.
Request your quoteCompare the manhole size ranges.
Our standard Light Ring has a 22- to 30-inch clear-opening range. Our XL has a 24- to 38-inch range. Compare these with the manholes your crew works on; check actual seating and clearance at each job.
Review what comes with your model.
Our standard Light Ring has a 1/4-inch polycarbonate cover secured open or closed with a cam-lock, a removable roller and a rope cleat. Milwaukee 18V is standard; DeWalt is special order. The standard model is tool only. Our XL uses 18V Milwaukee.
Get pricing for your order.
Our standard Light Ring lists at $3,699 and Light Ring XL at $4,699. Send your model and quantities for a written quote with availability, shipping and tax.
Keep your required site controls in place.
Keep required PPE, traffic control, confined-space procedures, employer safety programs and field judgment in place. Use the instructions for the supplied model. Do not use our Light Ring or XL as a fall-arrest device, guardrail, load-rated walking cover or life-safety anchor. Keep personnel and rescue lines off the equipment cleat and roller.
Read the opening-protection requirements and referencesProduct and purchasing questions
Model, battery and ordering questions.
How do we choose between standard and XL?
Compare the clear-opening ranges for the manholes your crew works on: 22 to 30 inches for our standard Light Ring and 24 to 38 inches for XL. Check rim shape, seating and clearance before each use. Ask us if you need help choosing a model. The standard range is 22 to 30 inches; the XL range is 24 to 38 inches.
Are batteries included?
18V Milwaukee is standard; DeWalt is available by special order. Our standard Light Ring is tool only. Batteries and chargers are sold separately.
Our Light Ring XL uses an 18V Milwaukee battery configuration.
Can our municipality request a quote?
Yes. We can prepare a written quote and provide the product information your purchasing team needs. Tell us the model and quantity you are considering, and we can work through the order details with you.
Can we arrange a demonstration?
Tell us your location, task and model of interest. We can discuss the available demonstration options with your team.
